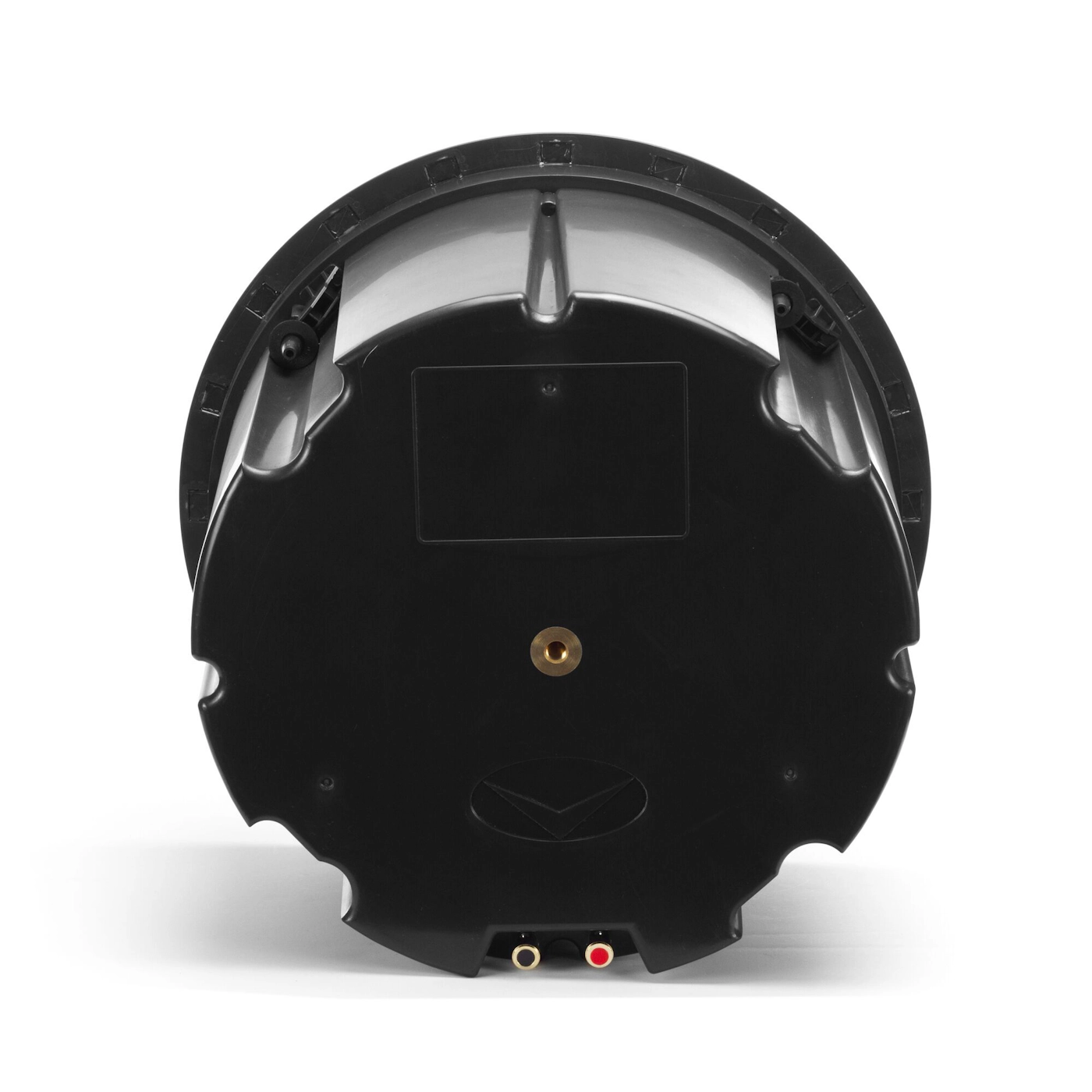

THX-5002-L In-Ceiling Speaker

(# 1066119) Product Support »

Armed with explosive dynamics that won't disrupt your home's decor, the Klipsch THX® Ultra2-certified in-ceiling speaker creates realistic audio experiences that rival those found in large movie theaters and concert halls.


  • Altavoz de frecuencias altas de titanio de 1 in
  • Dual 5,25” Cerametallic Woofers
  • THX® Ultra2 Certified
  • Cinema Quality Sound
  • Maximum Installation Reliability
  • Unlimited Flexibility
  • Edge-to-Edge Grille

Select your location and we'll connect you to the premium custom installer in your area.

Representative(s) for State:

Haga clic aquí para enviar un correo electrónico a e incluya los detalles que se relacionan con sus requisitos de diseño/instalación de sonido personalizada. Leeremos su solicitud y responderemos en un lapso de 48 horas de haber recibido el correo electrónico.


System Type2-way In-ceiling
Respuesta de frecuencia45 Hz - 20 kHz +/- 3dB
Manejo de potencia100W/400W
ImpedanciaCompatible con 8 ohmios
Crossover Frequency1200 Hz & 1800 Hz
Driver de frecuencia alta1” Titanium tweeter in a 7,5 x 3,75” 60-90-110 VCT 45º Skewed horn
Driver de frecuencia bajaTwo 5,25” Cerametallic Woofers
Tipo de carcasaBass Reflex via 1,6” diameter port - Front Flush with Ceiling
Hole dimensions (mm/in, HxWxD)13,25” (33.7cm)
Dimensiones14,89” (378.21mm)
Profundidad de montaje9,23” (234.44mm)
Peso12 lb (5.4kg)
AcabadoWhite paintable grill
Kit de instalaciónIK-502-C
Cutout Diameter13,39” (349.11mm)


Works well with multi-channel movie and music presentations playing up to reference levels in rooms of 3.000 cubic feet or larger.


Employs dual 5.25-inch Cerametallic woofers that operate in an enclosed tuned-port chamber. These exclusive woofer cones offer superb damping characteristics that will not flex or resonate at frequencies within the drivers’ operating ranges, resulting in consistent bass response regardless of the installation or ceiling air space. A 1-inch titanium tweeter in a patented 60-90-110-degree horn that features Variable Coverage Technology, or VCT, allows the speaker to create precise imaging and localized sound fields.


Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stereo or home theater system that’s just right for you.

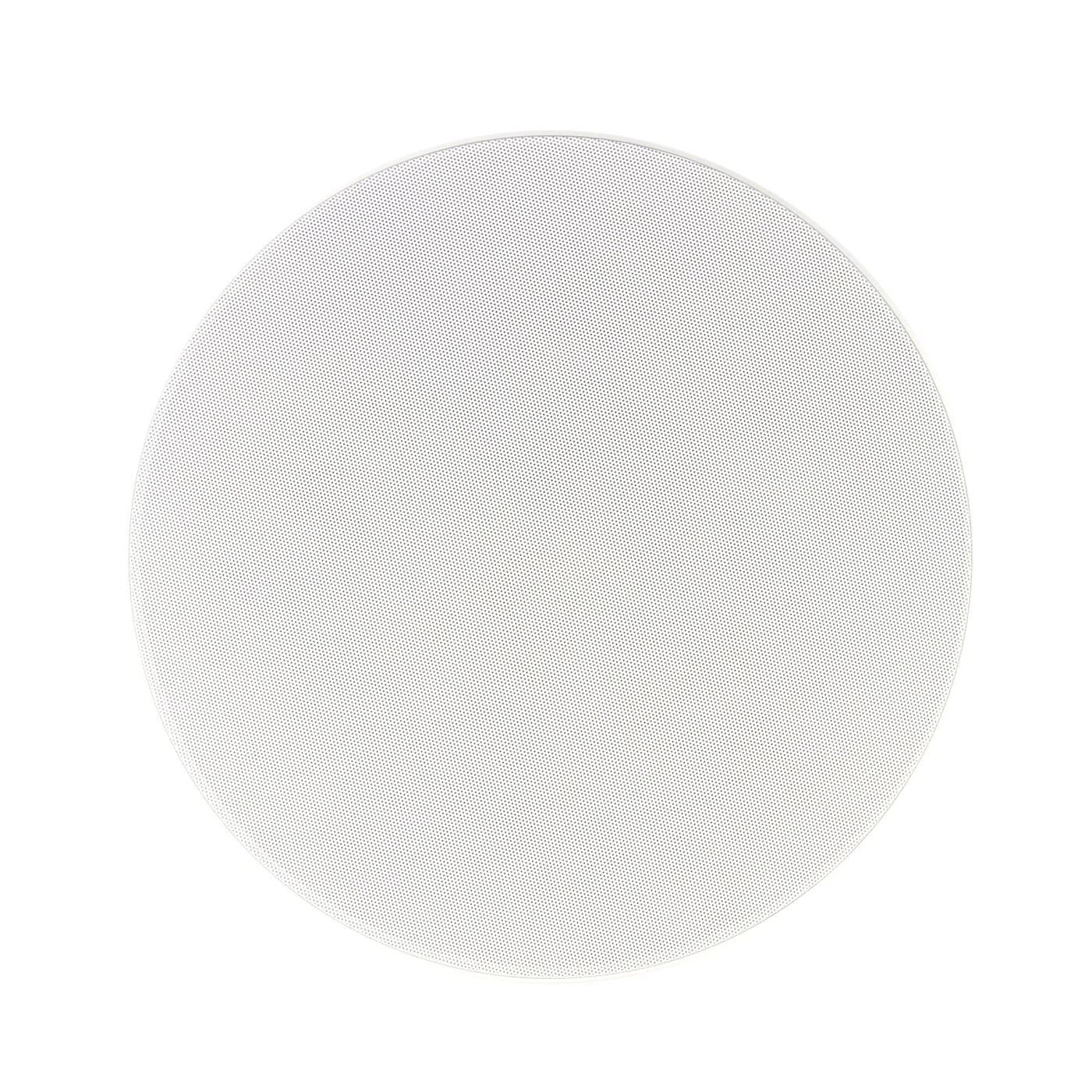

Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with today’s modern interior designs and disappear into the background, enabling sound to take center stage.
